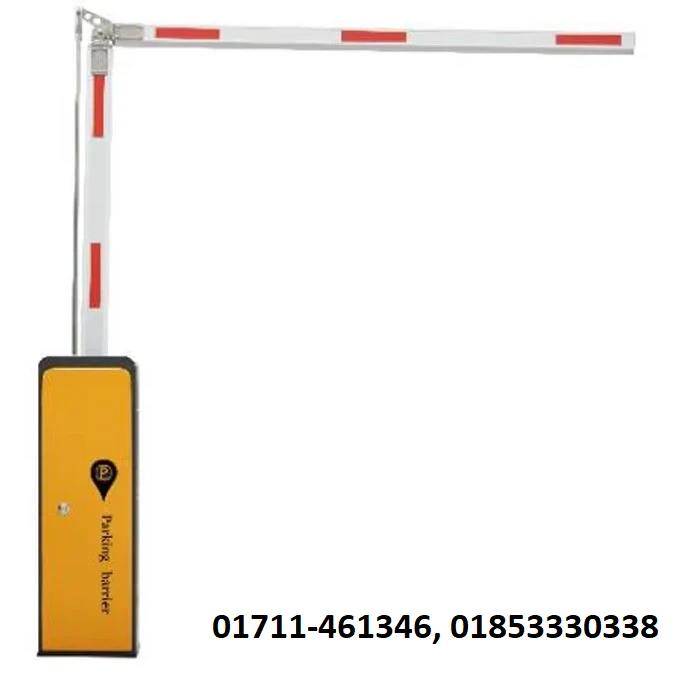

Parking Barrier Supplier in Bangladesh:
Parking Barrier bd is a product which ZKTeco owns the independent intellectual property rights. Its boom prevents entry of unauthorized vehicles to restricted area; and is raised by the linkage between the gate and the remote control; access control system, long-distance reader and number plate recognition system.
If a floor sensor is installed; strike can be avoided, and the boom will be automatically lowered after the vehicle passes through the gate; otherwise, the boom can be lowered manually by using a remote controller or press button.
The boom can be equipped with pressure wave. When there is any hindrance during the boom lowering; the boom will be automatically raised to prevent it from striking vehicles or people. LED light tape is also optional for changing color in boom raising or lowering, helping driver avoid hitting the boom.
ZKTeco Parking Barrier in Bangladesh 2023[/caption]
Parking Barrier in Bangladesh:
Parking barrier adopts die-casting aluminum alloy motor and extraordinary structural design, it offers not only a long-life cycle, high reliablity and quality, but also reduces the difficulty of equipment maintenance. It is an ideal choice for vehicle entrance control management.
barrier gates adopt ZKTeco interactive LED chassis design, programmable control panel, and adopt high-efficiency Brushless DC motor and SCM421 material gear transmission structure. It has the advantages of fast speed, stable quality, rich function expansion, and so on. It is a better comprehensive performance barrier gate.
Parking Barrier in Bangladesh 2023[/caption]
ZKTeco BG1000 in BD:
· The fastest operating speed is 1.5s, and the speed can be adjusted according to different boom arm length
· Reversible boom arm direction, compact and straightforward transmission mechanism, easy to install on-site
· Interactive chassis with LED indicator
· Digital control monitoring, delay automatic close, automatic test, rise/fall status display output
· Automatically turning off settings; allowing manual raising of the gate arm; anti-smashing; equipped with fire protection linkage functions; highly secure
· Users could adjust the position and the angle of rising/falling; there is a digital encoder automatically and accurately controlling the position
· 24V backup battery, ensuring normal operation when power is unexpectedly disconnected
· The chassis exterior uses a 2mm metal plate, electrophoresis, and powder coding
Operating Speed 1.5s 3s 5s
Boom Arm Length 3m 4.5m 6m
Boom Arm Type Telescopic straight boom arm
Chassis Dimension 350*300*1020mm
Ingress Protection Level IP54
Motor Type 24V brushless DC electric motor
Output Power 120W
Rated Current 6A
Power Supply AC 220V, 50Hz (default); AC 110V, 60Hz (optional)
Operating Temperature -35°C to 70°C
Operating Humidity <90%
Motor MCBF 3 million times
Remote Control Distance ≥30m
Chassis Weight 45kg
ZKTeco CMP200 in Bangladesh
·Support anti-smash and automatic closing with an infrared detector, loop detector, radar detector
·Arm direction can be exchanged between leftward and rightward according to site application
·Opening and closing angle of 90° ±2°
ZKTeco ProBG2000 Series Parking Barrier in BD:
Features
. LED light strip is optional for the boom. Parking Barrier Supplier in Bangladesh
. Mean Cycles Between Failure (MCBF) is upto 5 million times.The product lifespan is 10 times longer the traditional barrier gate.
. The gate's opening/closing speed is quick and can widely adjust from 0.9s- 10s, depends on vehicle flow and boom length.
. It can operate normally at temperature as low as -45°C and as high as 75°C.
. Wear-resistant, no mechanical impact, and impact absorption in motion.
. Automatically detects Power-off and lifts the Boom.
. When a Vehicle hits the boom, it swings out to avoid further damage. It has impact-resistance rubber strip.
. Supports fleet mode and open recording function. Gate can be closed after vehicle sensor has detected specified number of vehicles passed.
. Supports global standard voltage of 100-240V AC and 24VDC low voltage power supply.
. Low power consumption and energy saving design. lts barrier gate can save upto 500kWh per year.
Model ProBG2000 ProBG2100 PoBG2200
Motor Type Servo Motor
Boom Type Straight boom 90° Folding boom Fence boom
Boom Length Supports 3m/4.5m/6m (adjustable) 3m 3m/4m
Ingress Protection Level IP54
Operating Temperature -40°C to +75°C
Power Supply 24V DC, AC 100 to 240V AC
Controller Frequency 50 to 60Hz
Power Consumption 100W
Case Material Powder coated steel
Case Dimensions 330*330*970mm
Net Weight 48kg
Model Boom Length Operating Speed Boom with LED
ProBG2030 L/R 3m 0.9s N
ProBG2045 L/R 4.5m 2.5s N
ProBG2060 L/R 6m 4.5s N
ProBG2030 L/R-LED 3m 0.9s Y
ProBG2045 L/R-LED 4.5m 2.5s Y
ProBG2060 L/R-LED 6m 4.5s Y
ProBG2130 L/R 3m 0.9s N
ProBG2130 L/R -LED 3m 0.9s Y
ProBG2230 L/R 3m 2s N
ProBG2240 L/R 4m 3s N
ZKTeco ProBG3000 in Bangladesh:
High performance, High speed, High stability, Parking Barrier Supplier in Bangladesh
The ProBG3000 series is a high performance and high speed barrier gate. It adopts high performance servomotor, simple and reliable transmission structure, high temperature resistant control panel, humane interaction design on appearance and impact protection design on boom connector.
Motor Type Servomotor
Boom Type Straight boom 90° Folding boom
Boom Length Support 3m/4.5m/6m (Can be adjusted) 3m
Protection Level IP 54
Operating Temperature -40°C~+75°C
Power Supply 24V DC, AC 100~240V
Controller Frequency 50-60Hz
Power Consumption 100W
Case Material Powder coated steel
Case Dimensions 360*330*1000mm
Net Weight 48kg
ZKTeco PB1030[/caption]
ZKTeco Parking Barrier Price in Bangladesh: |
|
| Latest Parking Barrier Models | Price in Bangladesh (BDT) |
| ZKTeco PB1030 4M Parking Barrier | 60,000.00 |
| ZKTeco PB1060 5.8M Car Parking Barrier | 68,000.00 |
| ZKTeco PB4030 4M Parking Barrier Gate | 85,000.00 |
| ZKTeco PB4060 6M Parking Barrier Gate | 125,000.00 |
| ZKTeco PB4130 Folding Arm Barrier | 115,000.00 |
| ZKTeco PB3130 Folding Arm Barrier | 115,000.00 |
Car Parking Barrier / Boom Barrier Bangladesh:
TRIMATRIK MULTIMEDIA is a Complete Car Parking Barriers / Parking Boom barrier Complete Solution Provider With Full Automatic Access System as well as the Manual Operation and With related Sensors and Safety equipment Supplier in Bangladesh. We use the latest Technologies Controller, Sensors and High Performance Barrier Electro Mechanical Equipment to Perform Long Time Operation of Barrier System at Best Performance.
A Parking Boom barrier or Car Barrier is a Bar/Arm that used for Control of Vehicle Cars Entry and exit to a Parking area, Building , Zones where people wish to parks and keep the vehicle. Parking barrier used to block the access through a controlled point unless the vehicle is Authorized to parks in that area . Boom barriers can operate either automatically or man power.
Design Plan of a Parking Barrier System Depend on Technology available and Clients Choice of Using the System as per requirements. The designing of boom gates are often paired either end to end, or offset appropriately to block traffic in both directions or single direction. The Design Plan of Barrier is a Engineering Solution of Control the entry exit of a vehicle
either full automatic or manual as well as the safety of operation. For Detail please Consult with our technical team or engineer for your perfect solution.
ZKTeco Parking Barrier | Vehicle Parking Barrier Basic Specifications :
- Power: 220V AC, 50/60Hz.
- Power: 150Watt.
- basic safety: meeting the requirements vehicle Safety.
- Micro Controller Base Controllers with High Performance Motors, Sensors to Ensure the Perfect Operation.
- Operation Procedure
- Working Environment: -10 degree-+45 degree
- Channel Size: 3~6 Meter Depending on Requirements..
ZKTeco Parking Barrier in Bangladesh[/caption]
Vehicle Barrier /Boom Barrier Solution Feature :
- Highly compact in size have extremely silent operation with Heavy Duty Of Operation.
- Integration possible with wide range of accessories and all kinds of Vehicle Reader , Vehicle Parking Controller, Vehicle Access control systems
- Extremely reliable and maintenance at performance
- Manual release in case of power failure
- Battery back up facility
ZKTeco PB-10 Car Parking Automated Traffic Management :
zkteco Parking Barrier ZKTeco PB-10 automated traffic management system has 4M lane width, up to 4.8m with telescopic boom, opening / closing time 3S, supply voltage 110v AC or 220v AC, power consumption maximum 200w, frequency 50-60Hz.
Powder coated steel cabinet, aluminum alloy boom, base frame cast iron, temperature -20°C to +60°C, humidity ≤90%, ingress protection IP54, housing dimensions 240 x 250 x 980mm, packing dimensions 400 x 440 x 1120mm, net weight 47Kg, gross weight 52Kg, eSSL designed rolling pressure spring technology.
